Martin Logan® Architectural Helos Series In-Ceiling Speaker


Model #:

HELOS 12

At a Glance

Product Dimensions 9.5"h x 9.5"w x 4.62"d

New Martin Logan Helos 12 In-ceiling Speaker with directional tweeter for sale. Shop your authorized Martin Logan dealer for in-ceiling speaker deals.Read More

Available in Store Only
$349.00

Get to know this product.

Product Overview

Product Overview

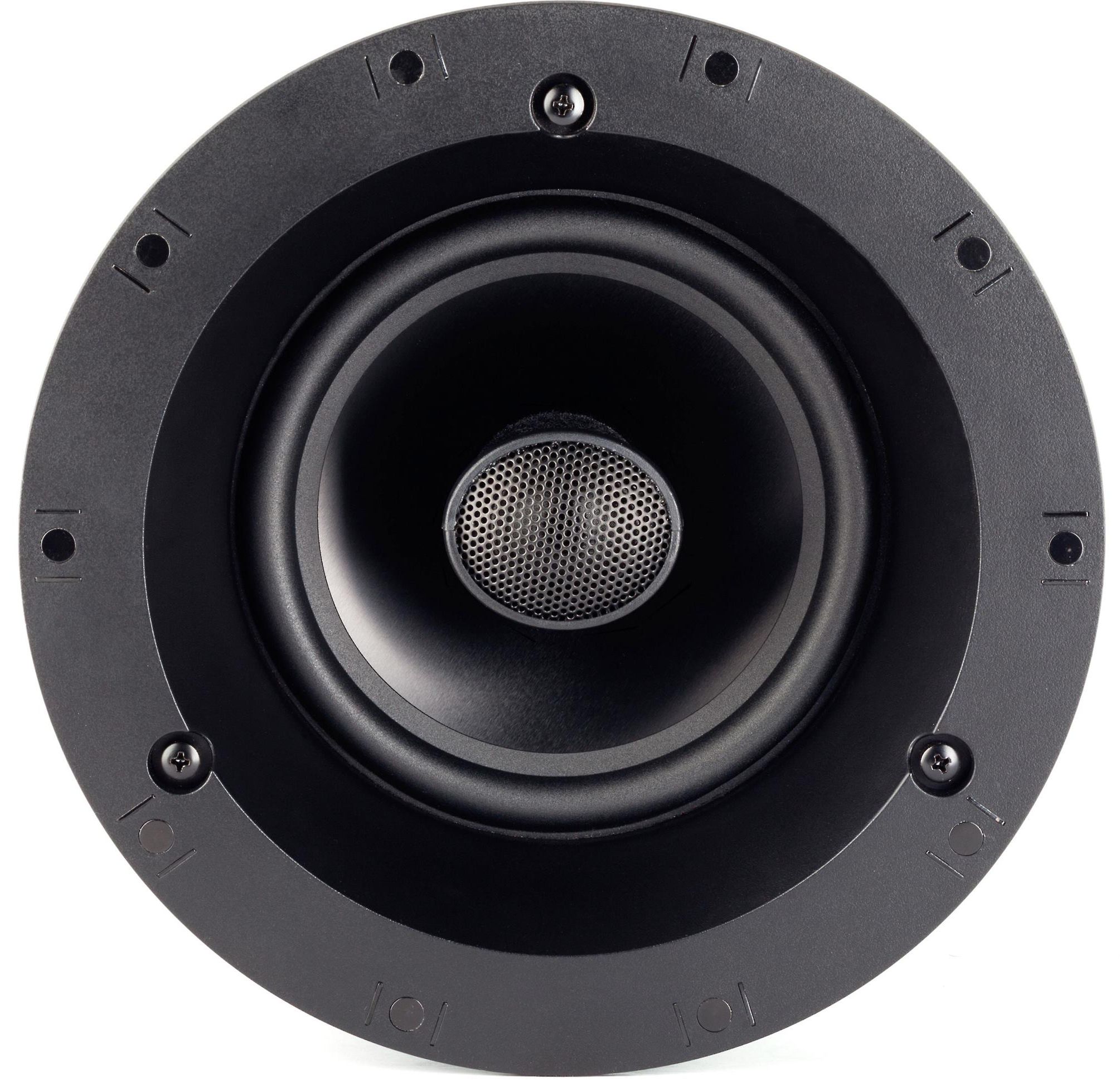

Helos 12 delivers legendary MartinLogan quality and performance in a compact, high-resolution in-ceiling loudspeaker. Helos 12 effortlessly provides extreme sonic accuracy from its a 1-inch neodymium soft dome tweeter mounted in an aim-able stem, a high-rigidity aluminum cone woofer, and proprietary Vojtko crossover topology.

Designed To Aim At The Listening Position

  • Helos 12 features a high-resolution neodymium tweeter mounted on a pivoting tweeter stem that easily aims at the primary listening location. This design allows the audience to enjoy the highest levels of in-ceiling audio performance, while still providing rich, detailed sound throughout the entire room.

Installer Friendly

  • A robust mounting-lock system allows quick, trouble-free installation. When not in use, the constant-control mounting locks are held securely within a self-contained housing. When moved into place during installation, they couple the speaker's chassis firmly to the ceiling. And if the speaker is ever removed, the locks retract and latch themselves back in their housings.

Stealthy Grilles

  • MartinLogan's new architectural speakers feature ultra-low profile, paint able micro perforated grilles with no visible bezel for an near invisible integration into any wall or ceiling. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.
Useful Documents
Specifications

General Specs

Product Weight (lbs.)4.5
Depth (in.)4.62
Width (in.)9.5
Height (in.)9.5
Impedance4-8 ohms
Woofer Size6.5"
RMS Power Handling (Watts)200
Enclosure TypeABS
Outdoor ApprovedNo
Input Power Range20-200 Watts
Manufacturer Warranty90 Day
Maximum Power Handling (Watts)200
Speaker Connector Type5-Way (Universal) Binding Posts
Frequency Response47Hz - 20kHz
Sensitivity89

Dimensions

Width:9.5

Other

Crossover Type:2800 Hz

Specifications

Sensitivity:89 dB

Styling

Color:White
