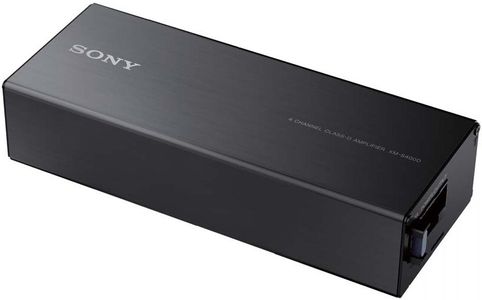

Product Overview
Fine detail across the whole spectrum - Hear thundering lows and soaring highs brought to life, with an ultra-wide frequency response that extends up to 100 kHz.
Class-D amplification technology for high power
Overload protection circuit and speaker level input
100 W x 4 maximum power output
Low and high pass filters for accurate sound
Continuous power output of 45 W per channel (at 4 O)1
Speaker level inputs with power sensing for simple installation
Enjoy powerful audio throughout the entire car, thanks to the 180 Watts total continuous system power (45 W X 4 RMS).
Class-D Technology
The Class-D Technology is a method to convert and amplify music signals with MOSFETs to high speed pulse signals. Furthermore, it features high efficiency and low heat generation.
Compact Design
Small enough to fit almost anywhere. Dimensions are 6.5in L x 1.5in H x 2.5in W.
Built-in LP (low-pass) filter and HP (high-pass) filter
The XMS400D has a 120Hz high-pass filter for the front channels and a 120Hz low-pass filter for the rear channels.
Protection circuit and indicator provided
This amplifier is provided with a protection circuit that operates in the following cases: When the unit overheats, When a DC current is generated, When the speaker terminals are short-circuited. If a protection circuit is activated, the POWER/PROTECT indicator will flash.
High level or low level input connection
The XMS400D has the ability to connect to a source unit by high (speaker) level or low (RCA) level input.
Hi-level Sensing Power On
If you have the factory original or some other car audio unit without a remote output for the amplifier, connect the remote input (REM) wire of the supplied power connection cable to the accessory power supply. With the high level input connection, the car audio unit can also be activated without need for a REMOTE connection.
