Connect to your mobile phone via Bluetooth® for hands-free and wireless audio streaming and hear rich sound from the powerful 4 x 55 W amplification and EXTRA BASS boost. The large, clear touchscreen wakes up two-and-a-half times faster than previous models and gives you intuitive control over your music and making phone calls.Read More
Call for Details615-833-5000
Enjoy intuitive and simple control for every journey, with a responsive 6.2 inch diagonal (15.7 cm) touchscreen display that wakes up two and a half times faster than previous models.
Connect to your smartphone - Enjoy hands-free calling with touchscreen phonebook and wireless audio streaming.
Control at your fingertips - The large, clear touchscreen gives you intuitive control over music playback and making phone calls.
Quick wake up - With activation two and a half times faster than previous models, you're ready to go right after turning on the ignition.

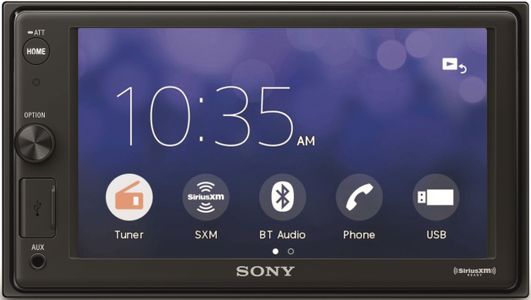

Everything you need is a quick tap away, thanks to the 6.2" (15.7 cm) diagonal full-color touchscreen. It wakes up two and a half times faster than previous models, so you can get on the road in no time.
The ergonomic rotary dial makes operation distraction-free. Turn it to control volume, or push the integrated button to launch sound control menus.
Multiple customization options let you adapt the audio experience to your liking. And with the built-in 4 x 55 W amplification, music sounds clear even at high volumes.
Advanced signal processing from the 4 x 55 W Dynamic Reality Amp 2 removes interference, so music sounds clear and detailed. Even when you crank up the volume.
Sound waves are directional, so if your speakers are in your doors or under your dash, the audio may seem muddy or unclear. Dynamic Stage Organizer adjusts the signal, improving the stereo positioning so music sounds like it's coming from the dashboard.
Tailor the sound to your personal preference with the 10-band graphic equalizer.
With the three pre-outs, you can add components of your choice, like extra amplifiers and subwoofers.
Have a rear camera installed? View its feed through the screen, along with customizable guidelines that help you back in safely.
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.
Connect to your smartphone with Bluetooth®
Rear view camera ready for easy parking
EXTRA BASS adds low-end power
Create virtual speakers on your dashboard with the Dynamic Stage Organizer
Rotary volume for easy operation
General Specs | |
Product Weight (lbs.) | 1.98 |
Bluetooth Capable | Yes |
Number of USB Ports | 1 |
DVD Player | No |
CD Player | No |
Car Stereo Din Size | Double |
Android Capable | Yes |
Touchscreen | Yes |
Water Resistant | No |
Aux Input | Yes |
Screen Size (Measured Diagonally) (in.) | 6.2 |
GPS | No |
Faceplate Style | In-Dash |
Preamp Voltage | 2 Volts |
Satellite Radio Ready | No |
Carplay Capable | No |
Color | Black |
General | |
USB | Yes (Front x 1) |
AUX-In | Yes |
Rear View Camera In | Yes |
Firmware Upgradability | Yes |
Pre Out | 3Pre 2 V |
DSO (Dynamic Stage Organizer) | Yes |
Output Power | 55 W |
Equalizer | 10-band Graphic Equalizer |
EXTRA BASS | Yes (Off/1/2) |
SUB Out | Yes |
Connectivity | |
Bluetooth | Yes |
Tuner | |
Preset | FM18 / AM12 |
RDS/EON | Yes (RBDS) |
Auto Memory | BTM |
Bluetooth Profile | |
HFP 1.5 | Yes (1.6) |
A2DP | Yes (1.3) |
AVRCP | Yes (1.3) |
PBAP | Yes (1.1) |
Bluetooth | |
Recent Calls (# of) | Yes |
External Microphone | Supplied |
Last Dialed Call | YES (select from the dialed call history) |
Alphabetical Phonebook Sorting | Yes |
Ring Volume Level Control | Yes |
Phonebook Access Via PBAP | Yes |
Call Volume Level Control | Yes |
Speed Dial | Yes (6 memories) |
Phone Battery Level Reminder | Yes |
Signal Strength Indication | Yes |
Bluetooth Audio | |
Audio Codec | SBC, AAC |
Audio Level Adjustment | -6dB to +6dB |
Cue/Rev | Yes |
META Data Indication | Yes |
Pause (Bluetooth Audio) | Yes |
Track +/- | Yes |
Group (Folder) +/- | Yes |
Repeat Control (Audio Device Side) | Yes |
Shuffle Control (Audio Device Side) | Yes |
Panel Design | |
Panel Surface Finish Color | Black |
Key Illumination | Yes (White) |
Monitor (AVC) | |
LCD Type | TFT Active Matrix |
Screen Aspect | 16:9 |
Screen Diagonal (Inch/mm) | 6.2 inch |
Screen Size (W x H mm) | 5.41 * 3.04 (inch) |
Resolution (DOT) | 800 x 480 |
Dimmer | Yes |
Contrast Ratio | 600 |
Brightness | 450cd / m2 |
Display Panel | |
Key Illumination Initial | Yes (White) |
Dimmer Adjust | Yes |
User Interface | |
Touch Panel | Yes / Resistive (Not Multi Touch Compatible) |
Gesture Command | Yes |
Remote Commander | RM-X170 |
Parking Control | Yes |
Aspect Ratio Select | Yes |
Rear View Camera-In Marker Setting | Yes |
USB Mass Storage Device Control | |
USB Device Control (Repeat) | TRACK / FOLDER / DRIVE |
USB Device Control (Shuffle) | OFF / FOLDER / DEVICE |
USB Device Control (Pause) | Yes |
USB Device Control (Resume Play) | Yes |
USB Device Control (Audio Codec) | PCM/MP3/WMA/AAC/FLAC |
USB Device Control (Audio Playable File Extension) | wav. /.mp3/.wma/.m4a/.flac |
USB Device Control (Video Codec) | MPEG4-SP / AVC (H.264 Baseline) / WMV / FLV / MKV / XviD |
USB Device Control (Video Playable File Extension) | .mp4 / .wmv / .mkv |
