Product Dimensions 1.5"h x 3"w x 3.43"d

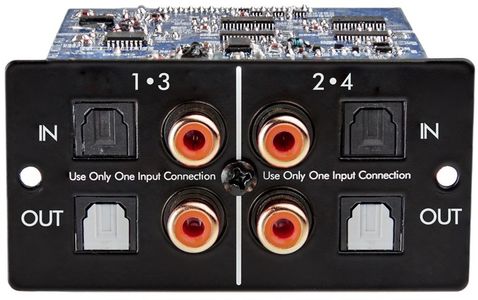

Digital input module for MKIII DSP amplifiers. Includes Toslink optical digital and Coaxial digital inputs, and loop outputs. Supports PCM input signal.Read More
Call Store for Purchase615-833-5000
High resolution 24 bit/96 kHz processing DAC capable of 4608 KBPS audio playback
IP and IR controllable via SonARC v2 for the ultimate in installation flexibility
Powerful, audiophile grade Class-D amplification, rated and certified at 8 and 4 ohms & stable to 2 ohms
Compact form factor allows for space savings in the equipment rack with ample power to the speakers
Meets EU power saving standards
Terminal blocks accept up to 12AWG speaker cable for longer runs and higher performance
Input/output connectivity for maximum installation flexibility: Line input/loop outputs; IP, IR, audio and voltage triggers; Ethernet jack for network connectivity
Bridgeable channels for applications when even more power is required
Certified to meet worldwide safety and FCC standards (TUV to UL standards, CE, RCM, C-Tick, RoHS, WEEE, UKCA)
Rack ears and removable feet included
Compatible with optional Sonance Analog, Digital, or Hybrid Input Modules
General Specs | |
| Color | Black |
| Depth (in.) | 3.43 |
| Width (in.) | 3 |
| Height (in.) | 1.5 |
| Color/Finish Name | Black |
| Compatible Model Sku | 93542, 93538, 93540 |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Outdoor Approved | No |
| Touchscreen | No |
Technical Specification | |
| Compatible With | DSP 2-150 MKIII, DSP 8-130 MKIII, DSP 2-750 MKIII |
| Input Signal | PCM Audio (not compatible with 5.1/7.1 surround sound) |
| Resolution | 16 - 24 bit |
| Sample Rate | 44.1 - 96kHz |
| Input 1 | Toslink optical digital or Coaxial digital (only one can be used) |
| Loop Output 1 | Buffered Toslink optical or Coaxial digital |
| Input 2 | Toslink optical digital or Coaxial digital (only one can be used) |
| Loop Output 2 | Buffered Toslink optical or Coaxial digital |
