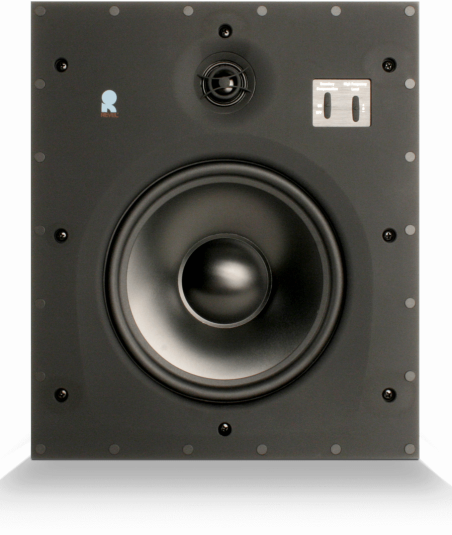

Revel® Architectural Series 7" In-Wall Loudspeaker

Since the first Revel® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

• Long-throw woofers with rubber surrounds provide high output with low distortion.
• 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
• High-order crossover network delivers accurate timbre reproduction.

Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.

Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

Dimensions

• Mounting depth: 3.7” (9.4 cm)
• Cutout dimensions (H x W): 12.1” x 10.2” (30.6 cm x 25.9 cm)
• Grille finished dimension (H x W): 13.0” x 11.1” (33.0 cm x 28.2 cm)

Specifications
