Product Dimensions 1.75"h x 9.52"w x 8.6"d

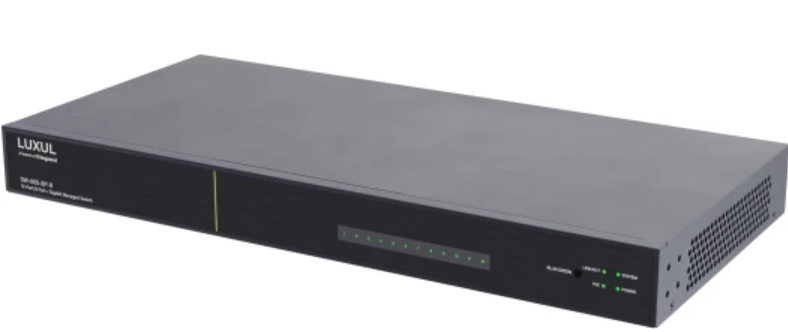

The SW-505-8P-R includes eight 1-Gigabit PoE+ Ethernet ports, two non-PoE Ethernet Ports, and two 1-Gigabit SFP expansion ports. Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb.Read More
The 8 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 130W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features an easy-to-use management interface that simplifies configuration and make this switch ideal for use in single-switch AVoIP environments.
Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously. This model also features a fanless design and is perfect for conference rooms, offices, or theaters where silent operation is needed.
Refreshed, simplified user interface
Layer 2/Layer 3 capabilities (static routing included)
Multicast/IGMP snooping and querying feature
Per port unregistered flooding
802.1Q VLAN and QoS support including DCSP
Dante and AES67 compatibility
AV-over-IP compatible
PoE Self-Healing with auto-recovery and power scheduling
8 PoE+ powered capable ports
130 Watt total PoE budget
Rear-facing ports
2 RJ45/SFP Combo Ports
Dynamic PoE allocation
Rack Mountable
8 PoE+ | 2 RJ45 | 2 SFP Ports - Gigabit L2/L3 Managed Switch - Gigabit L2/L3 Managed Switch
Power Cord
Rack Ears and Set of Four (4) Rubber Feet
Quick Install Guide & Regulatory Documentation
General Specs | |
| Depth (in.) | 8.6 |
| Width (in.) | 9.52 |
| Height (in.) | 1.75 |
| Voltage | 120 |
| Wattage | 152 |
| Color Finish Name | Gray |
| Manufacturer Warranty | 3 Year Limited |
| Number Of Lan Ports | 12 |
| Product Weight (lbs.) | 5.5 |
