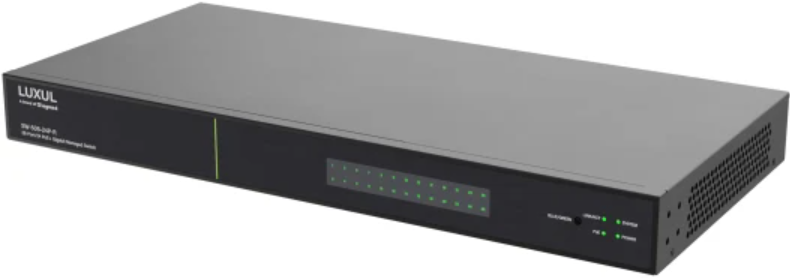

The SW-505-24P-R includes 24 1-Gigabit PoE+ Ethernet ports, two non-powered Ethernet ports, and two 1-Gigabit SFP expansion ports (SFP and non-powered ethernet ports cannot be used at the same time). Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb.Read More
The 24 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/atcompliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 250W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously.
Refreshed, simplified user interface
Supports inbound (ingress) ACL filtering
Layer 2/Layer 3 capabilities (static routing included)
Multicast/IGMP snooping and querying feature
Per port unregistered flooding
52Gbps switching capacity
802.1Q VLAN and QoS support including DCSP
Dante and AES67 compatibility
AV-over-IP compatible
PoE Monitoring: auto-recovery and power scheduling
24 PoE+ powered capable ports (IEEE 802.3at)
250 Watt total PoE budget
Standard 19-inch rack mount
2 RJ45/SFP Combo Ports
Dynamic PoE allocation
Rear-facing ports
24 PoE+ | 2 Combo RJ45/SFP Ports - 1 Gigabit L2/L3 Managed Switch
Power Cord
Rack Ears and Set of Four (4) Rubber Feet
Quick Install Guide & Regulatory Documentation
General Specs | |
| Width (in.) | 8.3 |
| Height (in.) | 1.75 |
| Voltage | 100 |
| Wattage | 293 |
| Color Finish Name | Gray |
| Manufacturer Warranty | 3 Year Limited |
| Number Of Lan Ports | 26 |
| Product Weight (lbs.) | 6.6 |
