Product Dimensions 1.75"h x 14.75"w x 17.4"d

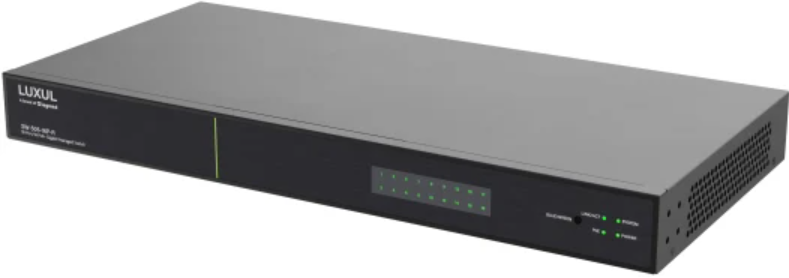

The SW-505-16P-R is a 16 port PoE+ rear-facing single-space rackmount 1Gb switch with 2RJ45/SFP 1Gb ports (aggregable up to 2Gbps) with a total PoE power budget of 185W. Each of the SFP ports can be used alone or aggregated together up to 4Gbps.Read More
This L2/L3 switch with 36Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch compatible for support of remote monitoring and management. ACL ingress filtering.
Refreshed, simplified user interface >PoE Self-Healing with auto-recovery and power scheduling
Supports inbound (ingress) ACL filtering
Layer 2/Layer 3 capabilities (static routing included)
Multicast/IGMP snooping and querying feature
Per port unregistered flooding
802.1Q VLAN and QoS support including DCSP
Dante and AES67 compatibility
AV-over-IP compatible
PoE Self-Healing with auto-recovery and power scheduling
16 PoE+ powered capable ports
185 Watt total PoE budget
Rear-facing ports
2 RJ45/SFP Combo Ports
Dynamic PoE allocation
Rack Mountable
16 PoE+ | 4 Combo RJ45/SFP Ports - 1Gb L2/L3 Managed Switch
Power Cord
Rack Ears and Set of Four (4) Rubber Feet
Quick Install Guide & Regulatory Documentation
General Specs | |
| Depth (in.) | 17.4 |
| Width (in.) | 14.75 |
| Height (in.) | 1.75 |
| Voltage | 100 |
| Wattage | 152 |
| Color Finish Name | Gray |
| Manufacturer Warranty | 3 Year Limited |
| Number Of Lan Ports | 18 |
| Product Weight (lbs.) | 6.2 |
