Product Overview
Fully sealed design provides indoor speaker sound for the great outdoors
Active driver pressure-coupled to racetrack Planar Low Bass Radiator for rich low end
Rugged PolyStone™ enclosures ensure a great performance even in the elements
Galvanized steel mounting brackets give 360-degree placement flexibility

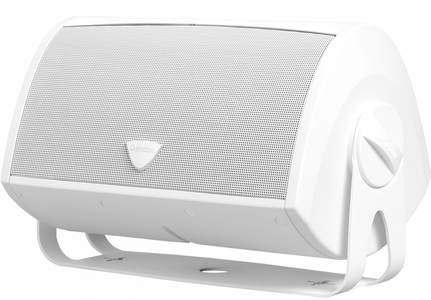

All-Weather Loudspeaker with 5.25" Mid/Woofer, 5 x 8" Bass Radiator and 1" Tweeter
Pressure Coupled Radiator Design
The AW series outdoor speaker provides clear, high-definition sound by pressure-coupling a BDSS technology driver to a racetrack-shaped mid/bass radiator cleverly placed on the opposite side of the enclosure. This technique offers a total bass radiating area greater than an 8-inch woofer to belt out powerful bass that fills outdoor areas.
BDSS Technology
Definitive Technology's Balanced Double Surround System (BDSS) driver offers a wide-bandwidth accurate frequency response, broad dispersion, low distortion, and detail retrieval; so you hear more the music with greater accuracy and enjoyment
Polystone Non-Resonant All-Weather Enclosure
The Definitive Technology AW5500 features a fully sealed (air and water tight) design, aluminum grilles, and rugged PolyStone enclosure, which allow it to be fully exposed to the elements and still reliably deliver their indoor speaker sound quality for years of outdoor listening enjoyment.
Balanced Double Surrounds
The speaker's balanced double surrounds support the cone at two points to provide better mechanical stability for longer, more linear excursion, and improved damping to suppress parasitic cone resonance.
Mineral-Filled Polymer Cone
The speaker features a deeply drawn mineral-filled polymer cone engineered using sophisticated 3D modeling techniques for wide range performance.
Waveguide
The cone's integrated waveguide smoothes off-axis response for broad, even dispersion and better imaging.
High Temperature Voice Coil
The driver's high temperature, oversized, lightweight vented voice coil offers improved power handling and quick transient response. The voice coil is also lengthened to increase linearity and lower distortion.
Magnet Structure
The driver's magnetic system is optimized by finite element analysis to maximize magnetic flux in the gap for high efficiency and linear excursion.
Die-Cast Alloy Basket
The die-cast alloy basket minimizes ringing and vibration while the open area minimizes back wave reflection.
